Rectangular Tank Surface Area Calculator: Calculate Tank Surface Area & Material Requirements
A rectangular tank surface area calculator computes the total surface area and material requirements for rectangular tanks using geometric formulas, where total surface area equals 2(LW + LH + WH) for closed tanks, or LW + 2LH + 2WH for open-top tanks. This comprehensive tool performs calculations including finding total surface area from length, width, and height, calculating open-top tank surface area, determining material requirements for tank construction, computing volume capacity, and analyzing all tank properties essential for engineers, contractors, aquarium designers, water storage planners, industrial designers, and anyone requiring accurate rectangular tank calculations for construction, water storage, aquaculture, industrial applications, chemical storage, or problem-solving in engineering, manufacturing, and facility design.
▭ Rectangular Tank Surface Area Calculator
Calculate surface area and material requirements
Closed Rectangular Tank

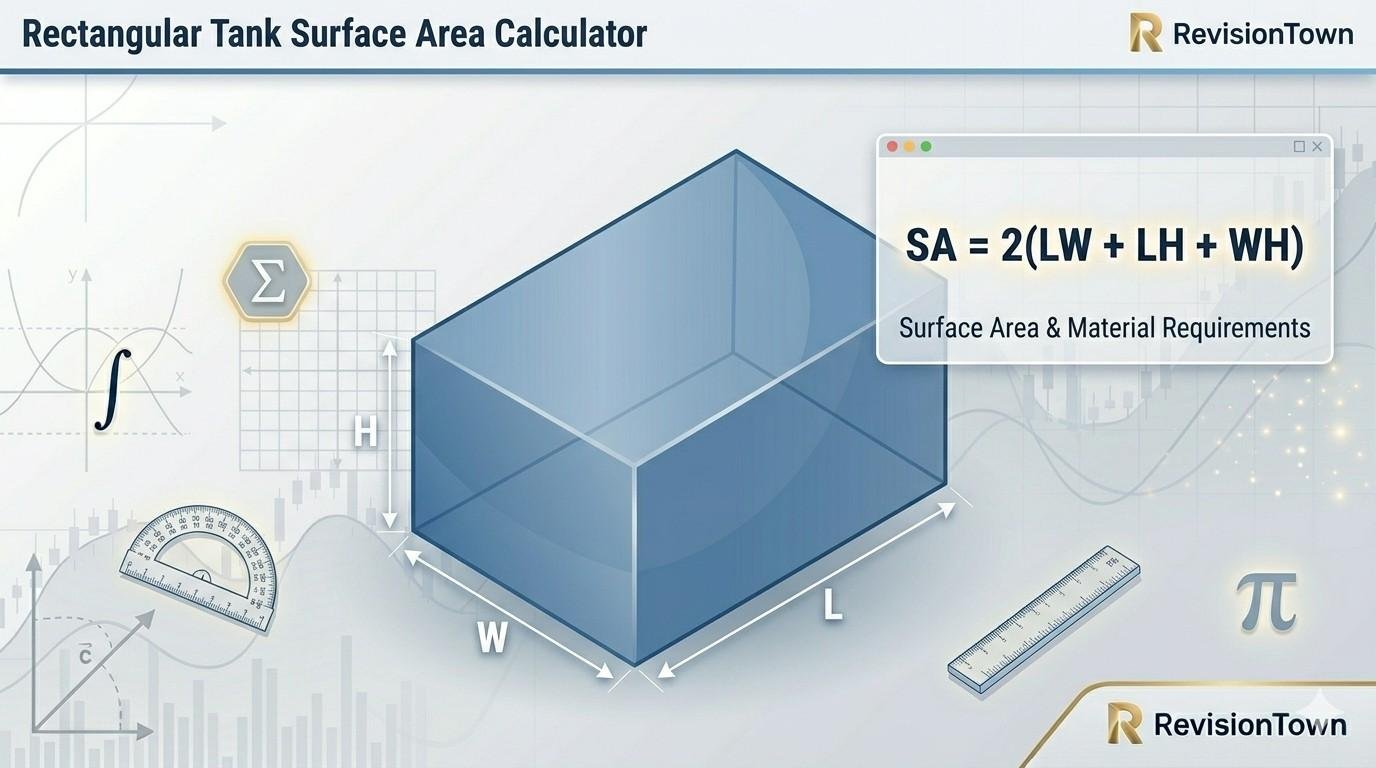

Formula: SA = 2(LW + LH + WH)
Open Top Rectangular Tank
Formula: SA = LW + 2(LH + WH)
Custom Tank Configuration
Select which sides to include
Select Surfaces to Include:
Complete Tank Analysis
All calculations and properties
Understanding Rectangular Tank Surface Area
The surface area of a rectangular tank (also called a rectangular prism or box) is the total area of all faces. A closed tank has six faces: top, bottom, front, back, left side, and right side. The formula SA = 2(LW + LH + WH) calculates total area by adding the areas of all six rectangular faces. For open-top tanks (common in aquariums and water storage), subtract the top area. Understanding tank surface area is essential for material estimation, coating requirements, heat transfer calculations, and construction planning.
Rectangular Tank Surface Area Formulas
Closed Tank (All Sides)
Total Surface Area:
\[ SA = 2(LW + LH + WH) \]
Expanded Form:
\[ SA = 2LW + 2LH + 2WH \]
Where:
\( L \) = length, \( W \) = width, \( H \) = height
Open Top Tank
Open Top Surface Area:
\[ SA = LW + 2LH + 2WH \]
Alternative Form:
\[ SA = LW + 2H(L + W) \]
Individual Face Areas
Top/Bottom: \( A_{top} = LW \)
Front/Back: \( A_{front} = LH \)
Left/Right: \( A_{side} = WH \)
Volume and Capacity
Volume:
\[ V = L \times W \times H \]
Capacity (liters):
\[ C = V \times 1000 \text{ (if dimensions in meters)} \]
Step-by-Step Examples
Example 1: Closed Rectangular Tank
Problem: Find surface area of a tank: L=10m, W=8m, H=6m.
Formula: SA = 2(LW + LH + WH)
Step 1: Calculate each face area
LW = 10 × 8 = 80 m²
LH = 10 × 6 = 60 m²
WH = 8 × 6 = 48 m²
Step 2: Sum and multiply by 2
SA = 2(80 + 60 + 48) = 2(188) = 376 m²
Answer: 376 square meters
Example 2: Open Top Tank
Problem: Swimming pool: L=10m, W=8m, H=6m (open top).
Formula: SA = LW + 2LH + 2WH
Calculation:
Bottom: LW = 10 × 8 = 80 m²
Long sides: 2LH = 2 × 10 × 6 = 120 m²
Short sides: 2WH = 2 × 8 × 6 = 96 m²
Total: 80 + 120 + 96 = 296 m²
Surface Area Reference Table
| Dimensions (L×W×H) | Closed Tank SA | Open Top SA | Volume |
|---|---|---|---|
| 2×2×2 | 24 | 20 | 8 |
| 5×4×3 | 94 | 74 | 60 |
| 10×8×6 | 376 | 296 | 480 |
| 20×10×5 | 1,000 | 800 | 1,000 |
Common Tank Applications
| Application | Typical Size | Configuration | Use Case |
|---|---|---|---|
| Aquarium | 120×50×60 cm | Open top | Fish keeping |
| Water Storage | 3×2×2 m | Closed | Residential |
| Swimming Pool | 10×5×2 m | Open top | Recreation |
| Chemical Tank | 5×3×4 m | Closed | Industrial |
| Rainwater Tank | 2×1.5×2 m | Closed | Water harvesting |
Real-World Applications
Water Storage & Management
- Water tanks: Calculate liner material for rectangular water storage
- Rainwater harvesting: Determine tank coating requirements
- Swimming pools: Estimate tile or liner material needed
- Irrigation tanks: Calculate construction materials
Aquaculture & Aquariums
- Fish tanks: Determine glass panel requirements
- Aquaculture ponds: Calculate liner area for rectangular ponds
- Display aquariums: Estimate acrylic sheet requirements
- Breeding tanks: Plan material for multiple tank systems
Industrial & Chemical
- Chemical storage: Calculate coating for corrosion protection
- Process tanks: Determine insulation material requirements
- Mixing tanks: Estimate interior lining needs
- Settling tanks: Calculate concrete forming requirements
Construction & Architecture
- Foundation pits: Calculate excavation and forming area
- Basement waterproofing: Determine membrane area
- Box structures: Estimate exterior cladding
- Storage units: Calculate interior finish materials
Tips for Tank Surface Area Calculations
Best Practices:
- Identify configuration: Determine if tank is closed, open-top, or custom
- Check all six faces: Top, bottom, and four sides for closed tanks
- Use consistent units: Convert all dimensions to same unit
- Add material waste: Include 10-15% extra for cuts and overlaps
- Consider thickness: Use interior or exterior dimensions consistently
- Account for seams: Plan for welding/bonding overlap areas
- Verify calculations: Double-check with expanded formula
Common Mistakes to Avoid
⚠️ Calculation Errors
- Missing faces: Forgetting to include all six sides
- Not doubling: Forgetting factor of 2 in closed tank formula
- Wrong formula: Using closed tank formula for open-top tanks
- Unit mismatch: Mixing meters and feet in calculation
- Confusing dimensions: Swapping length, width, height incorrectly
- Interior vs exterior: Not specifying which dimensions used
- Forgetting waste: Not accounting for material cutting waste
- Volume confusion: Confusing surface area (m²) with volume (m³)
Frequently Asked Questions
How do you calculate rectangular tank surface area?
For closed tank: SA = 2(LW + LH + WH). For open top: SA = LW + 2LH + 2WH. Example: tank 10m×8m×6m closed gives SA = 2(80+60+48) = 376 m². Open top: 80+120+96 = 296 m². Steps: (1) multiply length×width for top/bottom, (2) multiply length×height for front/back, (3) multiply width×height for left/right, (4) add all areas, (5) multiply by 2 for closed tank. Essential for material estimation, coating, lining calculations.
What is the difference between closed and open-top tank surface area?
Closed tank includes all six faces: top, bottom, four sides. Open-top tank excludes top surface. Example: 10×8×6m tank. Closed: SA = 2(LW+LH+WH) = 376 m². Open-top: SA = LW+2LH+2WH = 296 m² (80 m² less). Difference equals one top surface area. Swimming pools, aquariums typically open-top. Water storage, chemical tanks typically closed. Formula adjustment simple: subtract top area (LW) from closed tank total. Important for accurate material ordering.
How do you calculate material needed for tank lining?
Calculate surface area, add 10-15% waste. Example: open-top 10×8×6m tank has 296 m² surface area. With 15% waste: 296 × 1.15 = 340 m² material needed. Steps: (1) calculate exact surface area, (2) add waste factor for cuts/overlaps, (3) account for seam overlaps (typically 5-10 cm), (4) consider thickness—use interior dimensions for lining. Different materials have different waste factors. Flexible liners: 10-15%. Tile: 15-20%. Important for cost estimation and purchasing.
What is the surface area to volume ratio of a rectangular tank?
Ratio SA/V = 2(LW+LH+WH)/(LWH). Example: 10×8×6m tank has SA=376 m², V=480 m³, ratio=376/480=0.783 m⁻¹. Important for heat loss, coating coverage, chemical reaction rates. Smaller tanks have higher ratios—more surface per volume. Affects insulation requirements, heat transfer, material costs per unit volume. Cube (L=W=H) has minimum ratio for given volume. Long thin tanks have higher ratios than compact tanks. Critical for thermal and chemical engineering applications.
How do you calculate volume from surface area?
Cannot directly—need at least two dimensions. Volume V=L×W×H requires three dimensions. Surface area alone insufficient. Example: SA=376 m² could be many dimension combinations. If SA and two dimensions known, solve for third. Example: SA=376, L=10, W=8. Using SA=2(LW+LH+WH), solve for H. More complex than reverse. Typically calculate both independently from tank dimensions. Volume for capacity, surface area for material requirements.
What dimensions minimize surface area for given volume?
Cube (L=W=H) minimizes surface area for rectangular tank. Example: V=1000 m³. Cube: 10×10×10m, SA=600 m². Rectangle: 20×10×5m, SA=1000 m². Cube uses less material per volume. Mathematical principle: for given volume, sphere has minimum surface area, but for rectangular tanks, cube is optimal. Important for cost efficiency—less material needed. However, practical constraints (site dimensions, access, regulations) often require non-cubic shapes. Trade-off between material efficiency and functional requirements.
Key Takeaways
Understanding rectangular tank surface area calculations is essential for construction, water storage, aquaculture, and industrial applications. The formulas SA = 2(LW+LH+WH) for closed tanks and SA = LW+2LH+2WH for open-top tanks provide the foundation for accurate material estimation and cost planning.
Essential principles to remember:
- Closed tank: SA = 2(LW + LH + WH)
- Open top: SA = LW + 2LH + 2WH
- Six faces total: top, bottom, four sides
- Factor of 2 accounts for opposite faces
- Surface area in square units (m², ft²)
- Volume = L × W × H (cubic units)
- Add 10-15% waste for materials
- Use consistent units throughout
- Cube minimizes SA for given volume
- Specify interior or exterior dimensions
Getting Started: Use the interactive calculator above to calculate rectangular tank surface area for closed tanks, open-top configurations, or custom designs. Enter length, width, and height, select your unit, and receive instant results with material requirements. Perfect for engineers, contractors, aquarium designers, and anyone planning water storage or tank construction projects.
