Spherical Cap Surface Area Calculator: Calculate Cap Area from Height & Radius
A spherical cap surface area calculator computes the curved surface area of a spherical cap (the portion of a sphere cut off by a plane) using geometric formulas, where curved surface area equals 2πrh (where r is sphere radius and h is cap height), and total surface area including the base equals 2πrh + πa² (where a is base radius). This comprehensive geometric tool performs calculations including finding curved surface area, total surface area including base, volume of spherical cap, base circle area, and all related properties essential for mathematicians, engineers, architects, designers, and anyone requiring accurate spherical cap calculations for dome construction, lens design, container manufacturing, astronomical calculations, or problem-solving in engineering, architecture, optics, and advanced geometry applications.
🔴 Spherical Cap Surface Area Calculator
Calculate spherical cap properties
Calculate from Sphere Radius and Cap Height
Formula: Curved SA = 2πrh
Calculate from Base Radius and Height
When base radius is known
Calculate from Volume
Find surface area from cap volume
Complete Spherical Cap Analysis
All properties at once
Understanding Spherical Cap Surface Area

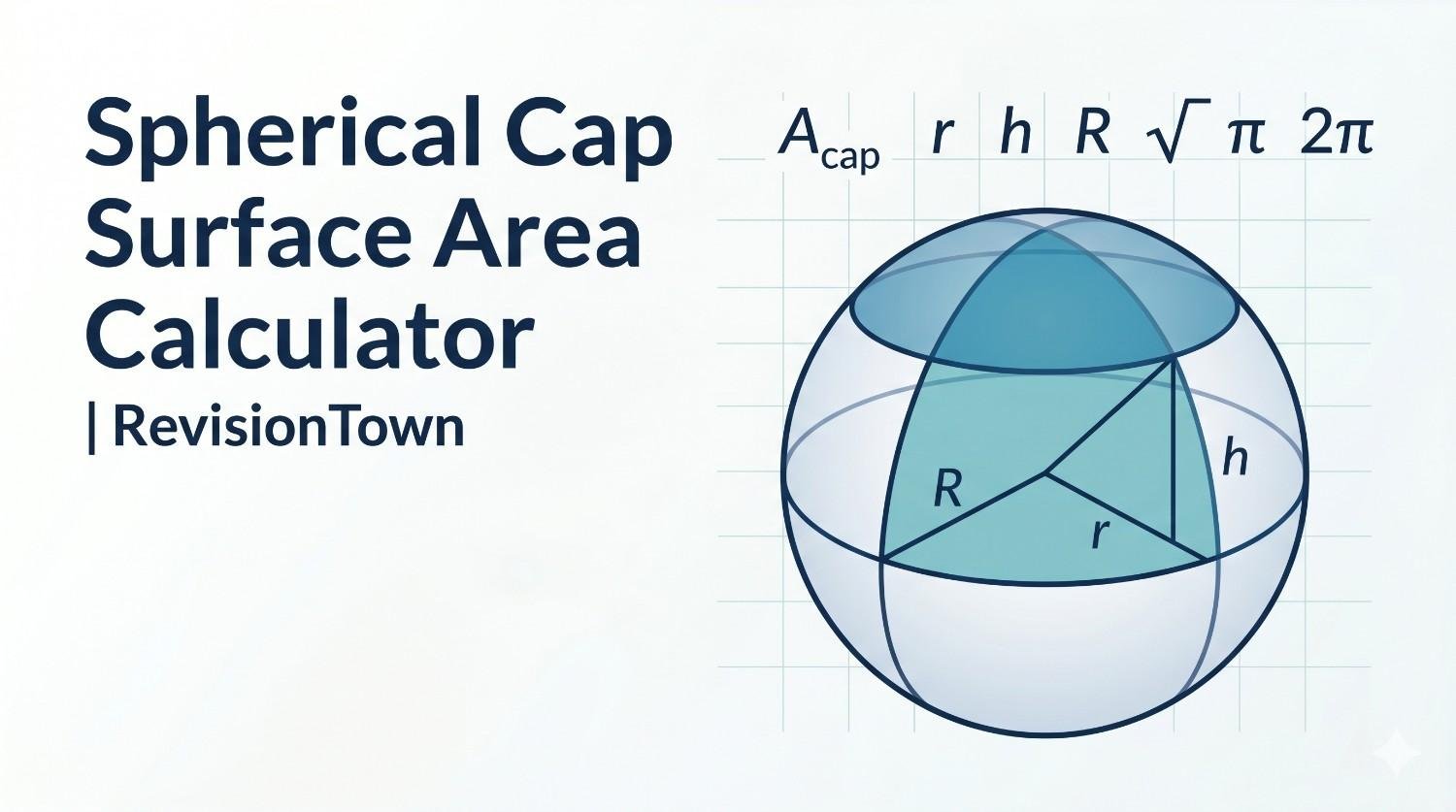

A spherical cap is the region of a sphere cut off by a plane. Imagine slicing through a sphere—the smaller piece is a spherical cap. The curved surface area is calculated using the sphere radius (r) and cap height (h) with the formula 2πrh. The total surface area includes the circular base area. Understanding spherical caps is essential for dome construction, lens design, storage tank calculations, and astronomical applications where portions of spheres are involved.
Spherical Cap Formulas
Surface Area Formulas
Curved Surface Area (without base):
\[ A_{curved} = 2\pi rh \]
Total Surface Area (with base):
\[ A_{total} = 2\pi rh + \pi a^2 \]
Where:
\( r \) = sphere radius
\( h \) = cap height
\( a \) = base radius
Base Radius Formula
Base Radius from r and h:
\[ a = \sqrt{h(2r - h)} = \sqrt{2rh - h^2} \]
Sphere Radius from a and h:
\[ r = \frac{a^2 + h^2}{2h} \]
Volume Formula
Volume of Spherical Cap:
\[ V = \frac{\pi h^2}{3}(3r - h) = \frac{\pi h}{6}(3a^2 + h^2) \]
Special Cases
Hemisphere (h = r):
\[ A_{curved} = 2\pi r^2 \]
\[ V = \frac{2\pi r^3}{3} \]
Step-by-Step Examples
Example 1: Standard Spherical Cap
Problem: Find surface area of spherical cap: r=10 cm, h=3 cm.
Step 1: Calculate curved surface area
A = 2πrh = 2 × π × 10 × 3 = 60π ≈ 188.50 cm²
Step 2: Find base radius
a = √(2rh - h²) = √(2×10×3 - 3²) = √51 ≈ 7.14 cm
Step 3: Calculate base area
A_base = πa² = π × 51 ≈ 160.22 cm²
Step 4: Total surface area
A_total = 188.50 + 160.22 = 348.72 cm²
Example 2: Hemisphere
Problem: Calculate surface area of hemisphere with r=5 cm.
For hemisphere: h = r = 5 cm
Curved surface: A = 2πr² = 2π × 5² = 50π ≈ 157.08 cm²
Base area: πr² = 25π ≈ 78.54 cm²
Total: 157.08 + 78.54 = 235.62 cm²
Spherical Cap Reference Table
| r (Radius) | h (Height) | Curved SA | Base Area | Volume |
|---|---|---|---|---|
| 10 | 2 | 125.66 | 113.10 | 75.40 |
| 10 | 3 | 188.50 | 160.22 | 141.37 |
| 10 | 5 | 314.16 | 235.62 | 392.70 |
| 10 | 10 | 628.32 | 314.16 | 2,094.40 |
Common Applications
| Application | Typical Dimensions | Configuration | Use Case |
|---|---|---|---|
| Dome Structure | r=20m, h=5m | Partial sphere | Architecture |
| Contact Lens | r=8mm, h=3mm | Small cap | Optics |
| Tank Head | r=2m, h=0.5m | Shallow cap | Engineering |
| Planetarium | r=15m, h=15m | Hemisphere | Education |
Real-World Applications
Architecture & Construction
- Dome structures: Calculate material for curved roof construction
- Geodesic domes: Estimate panel area for spherical segments
- Observatories: Design hemispherical observatory roofs
- Planetariums: Calculate projection surface area
Engineering & Manufacturing
- Pressure vessel heads: Calculate surface area of tank ends
- Storage tanks: Estimate coating requirements for spherical caps
- Container design: Determine material for hemispherical ends
- Lens manufacturing: Calculate optical surface areas
Astronomy & Science
- Celestial calculations: Compute visible portion of celestial bodies
- Observatory domes: Design rotating hemispherical structures
- Telescope mirrors: Calculate mirror surface area
- Planetary science: Analyze spherical cap regions on planets
Optics & Medical
- Contact lenses: Calculate lens surface area
- Optical lenses: Determine curved surface area
- Medical implants: Design spherical cap-shaped prosthetics
- Eye anatomy: Model corneal surface areas
Tips for Spherical Cap Calculations
Best Practices:
- Verify h ≤ 2r: Cap height cannot exceed sphere diameter
- Use accurate π: Use 3.14159 or calculator π for precision
- Check base radius: a = √(2rh - h²) must be real and positive
- Hemisphere check: When h=r, it's exactly half sphere
- Units consistency: Keep all measurements in same units
- Curved vs total: Specify if base area included
- Shallow cap approximation: For h << r, base nearly flat
Common Mistakes to Avoid
⚠️ Calculation Errors
- Wrong formula: Using full sphere formula instead of cap formula
- Missing base: Forgetting to add base area for total surface
- Height confusion: Using diameter instead of cap height
- Incorrect base radius: Not calculating a = √(2rh - h²)
- Hemisphere mistake: Not recognizing h=r special case
- Unit mismatch: Mixing units in calculation
- Negative under square root: Occurs when h > 2r (impossible)
- Volume confusion: Using surface area formula for volume
Frequently Asked Questions
What is a spherical cap?
A spherical cap is portion of sphere cut by plane—the smaller piece when slicing through sphere. Like cutting top off orange. Defined by sphere radius (r) and cap height (h). Has curved surface and circular base. Hemisphere is special case where h=r (half sphere). Examples: dome roofs, contact lenses, tank ends. Different from sphere segment (includes both caps from parallel planes). Surface area = 2πrh for curved part. Essential geometry for architecture, engineering, optics.
How do you calculate spherical cap surface area?
Formula: A = 2πrh where r=sphere radius, h=cap height. Example: r=10 cm, h=3 cm gives A = 2×π×10×3 = 60π ≈ 188.5 cm². This is curved surface only. For total surface area (including base): add πa² where a=base radius = √(2rh-h²). Total = 2πrh + π(2rh-h²). Simpler than appears—just multiply 2πrh. For hemisphere (h=r): A=2πr². Essential for dome construction, tank design, lens calculations.
What is the difference between spherical cap and hemisphere?
Hemisphere is special spherical cap where h=r (height equals radius)—exactly half sphere. General spherical cap has any h ≤ 2r. Hemisphere: curved SA = 2πr², total with base = 3πr². General cap: curved SA = 2πrh (varies with h). Example: r=10. Hemisphere: h=10, SA=200π. Smaller cap: h=3, SA=60π. Hemisphere symmetrical—divides sphere equally. Any cap with h≠r is non-hemispherical. Hemisphere common in architecture (dome), optics (half-ball lens).
How do you find base radius of spherical cap?
Formula: a = √(2rh - h²) = √(h(2r-h)). Example: r=10, h=3 gives a = √(2×10×3 - 3²) = √(60-9) = √51 ≈ 7.14. Derived from Pythagorean theorem applied to sphere cross-section. Important: must have h ≤ 2r for real result. If h=r (hemisphere): a=r. If h → 0 (tiny cap): a → 0. If h=2r (full sphere): a=0 (point). Base radius essential for total surface area, volume calculations, practical construction measurements.
What is volume of spherical cap?
Formula: V = (πh²/3)(3r-h). Example: r=10, h=3 gives V = (π×9/3)(30-3) = 3π×27 = 81π ≈ 254.5 cm³. Alternative formula using base radius: V = (πh/6)(3a²+h²). For hemisphere (h=r): V = (2πr³)/3 = (2/3)×sphere volume. Volume grows faster than surface area as h increases. Important for capacity calculations—tanks, containers, domes. Different from surface area (m²) which measures coating/material. Volume in m³ for capacity.
How is spherical cap used in real life?
Domes: architectural structures (Capitol building, planetariums). Storage tanks: hemispherical ends on pressure vessels. Contact lenses: spherical cap shape fits eye. Observatory roofs: rotating hemispheres for telescopes. Pressure vessel heads: tank ends in chemical/petroleum industry. Geodesic domes: architectural design (Epcot Center). Optics: lens surfaces in cameras, microscopes. Astronomy: calculating visible portions of planets/moons. Medical: prosthetic design, corneal modeling. Essential for engineering calculations, material estimation, structural design in multiple industries.
Key Takeaways
Understanding spherical cap surface area calculations is essential for architecture, engineering, optics, and advanced geometry. The formula A = 2πrh provides the curved surface area, with additional calculations for base area and volume completing the analysis of these important three-dimensional shapes.
Essential principles to remember:
- Curved surface area: A = 2πrh
- Total surface area: 2πrh + πa²
- Base radius: a = √(2rh - h²)
- Cap height: h ≤ 2r (cannot exceed diameter)
- Hemisphere: special case where h = r
- Volume: V = (πh²/3)(3r - h)
- Units: surface area in square, volume in cubic
- Sphere radius r and cap height h are key parameters
- Base area = π(2rh - h²)
- Used in domes, tanks, lenses, astronomy
Getting Started: Use the interactive calculator above to compute spherical cap surface area from sphere radius and cap height, or use alternative input methods. Perfect for architects, engineers, opticians, astronomers, and anyone needing accurate spherical cap calculations for construction, manufacturing, or scientific applications.
