📚 Complete Guide to Horsepower and Watts

Understanding Horsepower and Watts

Horsepower (hp) is a unit of power measuring work rate, invented by Scottish engineer James Watt in 1782 to market his steam engines by comparing their output to the work capacity of draft horses. Three distinct horsepower standards exist: Mechanical horsepower (hp, hp(I), or SAE hp) equals 745.7 watts exactly, used primarily in the United States, United Kingdom, and countries following SAE (Society of Automotive Engineers) standards for automotive engines, industrial motors, and power equipment. Metric horsepower (designated PS in Germany from "Pferdestärke", CV in France/Spain from "chevaux-vapeur", ch in Switzerland, pk in Netherlands) equals 735.5 watts, used throughout Europe, Asia, and most other countries for vehicle specifications and industrial machinery. Electrical horsepower (hp(E)) equals exactly 746 watts, defined specifically for electric motor nameplate ratings in North America. Watts (W), named after James Watt, are the SI (International System of Units) standard unit of power where 1 watt = 1 joule per second, representing the rate of energy transfer or conversion. The fundamental conversions: 1 mechanical hp = 745.7 W; 1 metric hp (PS) = 735.5 W; 1 electrical hp = 746 W. Understanding these relationships is essential for electrical engineers calculating motor loads and circuit requirements, automotive engineers comparing vehicle specifications across international markets, mechanical engineers sizing pumps and compressors, facility managers determining electrical demand, and consumers comparing equipment specifications where manufacturers may list power in either horsepower or watts depending on region and industry convention.

Conversion Formulas

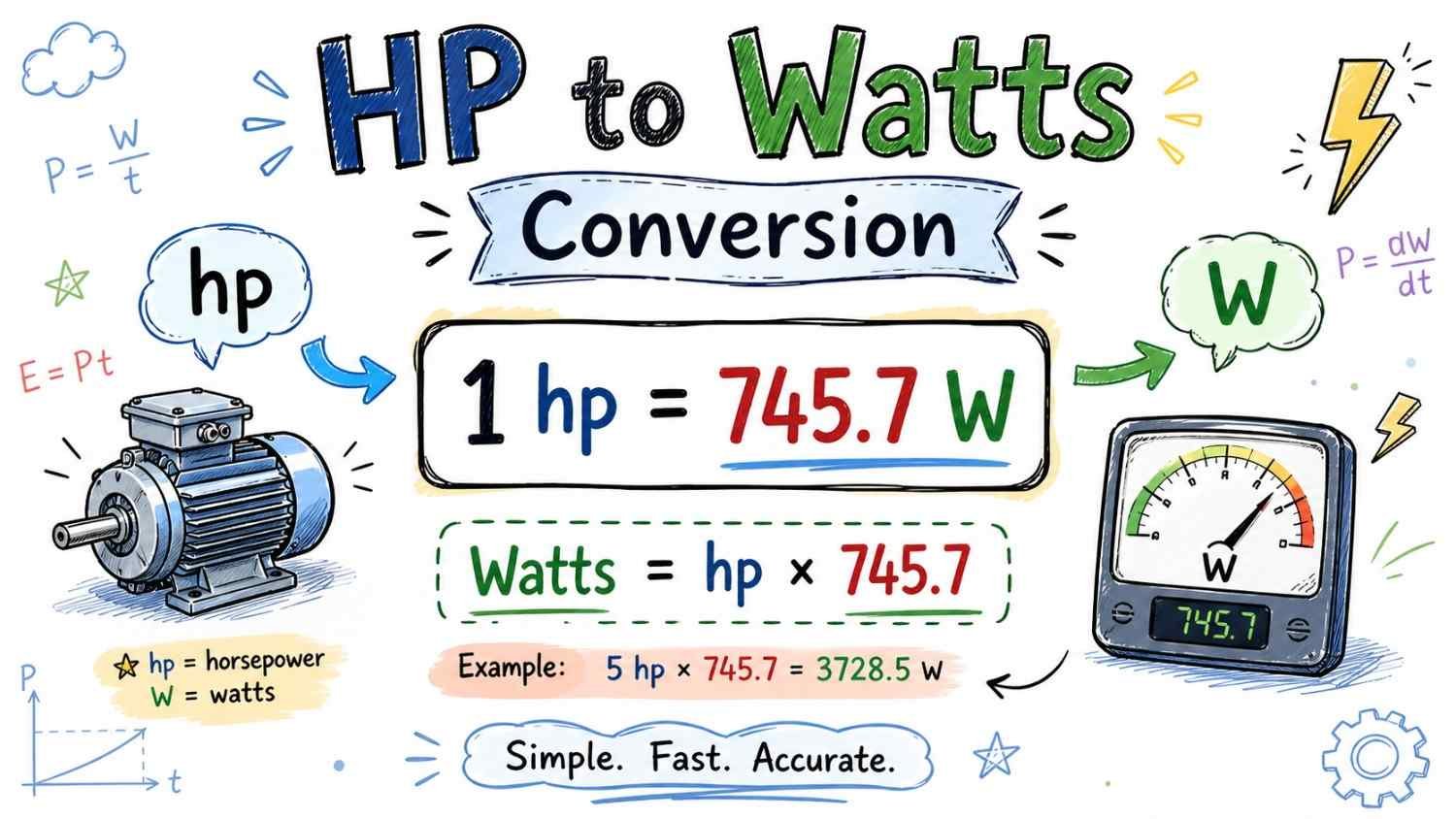

Mechanical Horsepower to Watts: \( P_{\text{W}} = P_{\text{hp}} \times 745.7 \). Multiply horsepower by 745.7 to get watts. Examples: 1 hp × 745.7 = 745.7 W; 5 hp × 745.7 = 3,728.5 W; 10 hp × 745.7 = 7,457 W; 50 hp × 745.7 = 37,285 W; 100 hp × 745.7 = 74,570 W; 200 hp × 745.7 = 149,140 W; 500 hp × 745.7 = 372,850 W. Metric Horsepower to Watts: \( P_{\text{W}} = P_{\text{PS}} \times 735.5 \). Examples: 1 PS × 735.5 = 735.5 W; 10 PS × 735.5 = 7,355 W; 100 PS × 735.5 = 73,550 W; 200 PS × 735.5 = 147,100 W. Electrical Horsepower to Watts: \( P_{\text{W}} = P_{\text{hp(E)}} \times 746 \). Examples: 1 hp(E) × 746 = 746 W; 10 hp(E) × 746 = 7,460 W; 100 hp(E) × 746 = 74,600 W. Watts to Mechanical Horsepower: \( P_{\text{hp}} = \frac{P_{\text{W}}}{745.7} \) or \( P_{\text{hp}} = P_{\text{W}} \times 0.001341 \). Examples: 1,000 W ÷ 745.7 = 1.341 hp; 5,000 W ÷ 745.7 = 6.705 hp; 10,000 W ÷ 745.7 = 13.41 hp; 75,000 W ÷ 745.7 = 100.6 hp. Watts to Metric Horsepower: \( P_{\text{PS}} = \frac{P_{\text{W}}}{735.5} \). Examples: 1,000 W ÷ 735.5 = 1.360 PS; 10,000 W ÷ 735.5 = 13.60 PS. These conversions enable electrical load calculations, motor selection, equipment specifications, and international power rating comparisons across different measurement systems.

Comprehensive Power Conversion Table

Electrical Load Calculations

Converting horsepower to watts is essential for electrical system design and circuit sizing. Motor Electrical Load: Electric motors are rated in horsepower (mechanical output) but draw electrical power in watts/kilowatts accounting for efficiency losses. A 100 hp motor at 90% efficiency draws 74,570 W ÷ 0.9 = 82,856 W electrical power (82.9 kW). At 85% efficiency: 87,729 W (87.7 kW). Circuit Breaker Sizing: Calculate current from watts for proper breaker selection. 10 hp motor (7,457 W mechanical) at 85% efficiency = 8,773 W electrical. Three-phase 480V: Current = 8,773 W ÷ (480 V × √3 × 0.85 PF) = 12.4 amps. Use 15-20A breaker per NEC. Single-phase 240V: Current = 8,773 W ÷ (240 V × 0.85 PF) = 43 amps. Use 50A breaker. Wire Sizing: 100 hp motor (82.9 kW at 90% efficiency) on three-phase 480V = 118 amps. NEC requires #1 AWG copper wire (130A capacity) minimum. Transformer Sizing: Facility with ten 50 hp motors + five 25 hp motors = (10 × 37,285 W) + (5 × 18,643 W) = 465,965 W mechanical. At 88% average efficiency = 529,506 W electrical demand. With 0.7 demand factor (not all run simultaneously) = 370,654 W (371 kVA). Use 500 kVA transformer. Generator Sizing: Backup generator for critical loads: two 100 hp motors + one 50 hp motor = 223,710 W mechanical. At 87% efficiency = 257,138 W electrical. With 1.25 starting surge factor = 321,423 W peak. Select 400 kW (500 kVA) generator. Understanding hp-to-watts conversion enables electrical engineers, facility managers, and contractors to properly size electrical infrastructure avoiding undersized circuits, overloaded transformers, and inadequate backup power systems.

Solar Power System Planning

Converting motor horsepower to watts enables proper solar system sizing for off-grid and grid-tied applications. Water Pumping: Off-grid ranch requires 3 hp well pump. 3 hp × 745.7 = 2,237 W mechanical. Pump efficiency 70%, motor efficiency 85%: 2,237 W ÷ (0.7 × 0.85) = 3,760 W electrical draw. Running 4 hours daily = 15.04 kWh/day. With 5 peak sun hours = 3,008 W solar array needed. Add 20% losses = 3,610 W array. Use twelve 300W panels (3,600 W) plus battery bank storing 30 kWh (2 days reserve). Agricultural Applications: Irrigation system uses 25 hp pump. 25 hp × 745.7 = 18,643 W mechanical. At 80% system efficiency = 23,304 W electrical. Running 6 hours daily = 139.8 kWh/day. Solar array = 139.8 kWh ÷ 5 sun hours = 27.96 kW. Use ninety-three 300W panels (27.9 kW) plus 280 kWh battery bank (2 days). Grid-tied option eliminates batteries, uses net metering. Workshop Tools: Off-grid workshop with 5 hp air compressor (3,729 W), 2 hp table saw (1,491 W), 1 hp dust collector (746 W). Total = 5,966 W. Tools don't run simultaneously—diversity factor 0.5 = 2,983 W average. Daily use 3 hours = 8.95 kWh. Solar array = 8.95 kWh ÷ 4 sun hours = 2,238 W. Use eight 300W panels (2,400 W) plus 18 kWh battery (2 days). Marine Applications: Sailboat electric propulsion uses 10 hp motor (7,457 W). At 90% motor efficiency = 8,286 W draw. 2-hour daily motoring = 16.57 kWh. Solar charging: 16.57 kWh ÷ 4 sun hours = 4,143 W panels needed. Use fourteen 300W flexible panels (4,200 W) plus 50 kWh lithium battery bank. Converting hp to watts enables accurate solar system sizing, battery capacity calculations, and realistic off-grid power expectations.

Battery and UPS System Design

Converting horsepower loads to watts enables proper battery backup and UPS (uninterruptible power supply) system sizing. Data Center UPS: Critical cooling system uses ten 5 hp fan motors. 10 motors × 5 hp × 745.7 W/hp = 37,285 W mechanical. At 88% motor efficiency = 42,369 W electrical draw. Required backup time 15 minutes = 0.25 hours. Energy needed = 42,369 W × 0.25 h = 10,592 watt-hours (10.6 kWh). Lead-acid battery at 50% DOD (depth of discharge) requires 21.2 kWh capacity. 48V battery: 21,200 Wh ÷ 48V = 442 amp-hours. Use eight 6V 225 AH batteries (series/parallel). Lithium allows 80% DOD: 13.2 kWh capacity, 275 AH at 48V. Industrial Facility: Mission-critical process uses 50 hp motor (37,285 W) plus 25 hp pump (18,643 W) = 55,928 W mechanical. At 86% average efficiency = 65,033 W electrical. 30-minute backup = 32,517 Wh (32.5 kWh). 120V DC system: 271 amp-hours at 50% DOD (542 AH capacity). Inverter must handle 65 kW continuous plus motor starting surge (typically 3× = 195 kW peak). Select 75 kW continuous / 225 kW surge inverter. Residential Backup: Home well pump 1.5 hp (1,119 W) plus sump pump 0.5 hp (373 W) = 1,492 W mechanical. At 75% efficiency = 1,989 W electrical. 4-hour backup = 7,956 Wh (8 kWh). 12V battery: 663 AH at 50% DOD (1,326 AH capacity). Four 6V 335 AH golf cart batteries (series). Medical Equipment: Hospital critical systems: three 3 hp HVAC motors (6,711 W mechanical). At 89% efficiency = 7,539 W electrical. 2-hour backup = 15,078 Wh (15.1 kWh). Redundant UPS systems each sized 10 kVA continuous / 30 kVA surge. Battery bank 20 kWh usable capacity (40 kWh total at 50% DOD). Converting hp to watts enables accurate UPS sizing, battery capacity specification, and inverter selection ensuring adequate backup power for critical loads.

Automotive Electrical Systems

Vehicle electrical systems convert mechanical engine horsepower to electrical watts for accessory power. Alternator Requirements: Vehicle accessories draw electrical power while engine provides mechanical power. 100 hp engine dedicates ~2-5 hp for alternator. 3 hp × 745.7 = 2,237 W mechanical. Alternator efficiency 60% = 1,342 W electrical output. At 14V = 95 amps charging capacity. High-performance audio system adds demand: 2,000 W amplifier ÷ 14V = 143 amps. Requires high-output alternator (250+ amps) powered by 5-6 hp from engine. Electric Power Steering: Electric power steering replaces hydraulic pump traditionally consuming 2-4 hp continuously. Electric system draws 500-800 W only when steering (1-1.5 hp equivalent), improving fuel economy. Electric Water Pump: Racing applications replace belt-driven water pump (2-3 hp parasitic loss) with electric pump drawing 300-500 W (0.5-0.7 hp), freeing horsepower for acceleration. Hybrid Vehicle Calculations: Hybrid uses engine to drive generator. 50 hp dedicated to generator × 745.7 = 37,285 W mechanical. Generator efficiency 92% = 34,302 W electrical. Charges battery bank (storing energy) and powers traction motor. Electric motor draws 34,000 W (45.6 hp) for propulsion. System efficiency: mechanical to electrical (92%) × electrical to mechanical (90%) = 82.8% overall. Electric Vehicle Conversion: Converting ICE vehicle to electric: Original 150 hp engine. Electric motor needs 150 hp × 745.7 = 111,855 W (112 kW) for equivalent performance. Select 120 kW motor accounting for efficiency. Battery pack must deliver 120 kW continuous (C-rate = 2C for 60 kWh pack). Understanding hp-watts conversion enables proper electrical component sizing, alternator selection, and hybrid/electric vehicle system design.

HVAC and Refrigeration Systems

HVAC equipment specifies compressor and fan power in horsepower, requiring conversion to watts for electrical planning. Residential Air Conditioning: 3-ton AC unit uses 3 hp compressor (2,237 W mechanical). At 85% motor efficiency = 2,632 W electrical draw. Outdoor fan 0.25 hp (186 W mechanical, 240 W electrical at 78% efficiency). Indoor blower 0.5 hp (373 W mechanical, 466 W electrical at 80% efficiency). Total system draw = 3,338 W (3.3 kW). At 240V single-phase = 14.7 amps. Circuit requires 20A breaker, 12 AWG wire. Commercial Chiller: 200-ton centrifugal chiller uses 300 hp compressor motor. 300 hp × 745.7 = 223,710 W mechanical. At 96% motor efficiency (large motors more efficient) = 232,906 W electrical (232.9 kW). Three-phase 480V: Current = 232,906 W ÷ (480V × √3 × 0.88 PF) = 318 amps. Requires 400A circuit breaker, 600 kcmil copper conductors. Cold Storage Facility: Refrigeration system uses two 75 hp compressors (55,928 W each mechanical). At 94% efficiency = 59,498 W electrical each (119 kW total). Plus three 10 hp evaporator fans (7,457 W each mechanical, 8,513 W electrical at 87.6% efficiency) = 144.5 kW total facility demand. With 0.9 diversity factor (not all running full load simultaneously) = 130 kW connected load. Data Center Cooling: Precision AC unit uses 15 hp compressor (11,186 W mechanical, 13,042 W electrical at 85.8% efficiency) plus 5 hp fan (3,729 W mechanical, 4,598 W electrical at 81% efficiency). Unit total = 17.6 kW electrical draw. Data center with ten units = 176 kW cooling load. Understanding hp-to-watts conversion enables HVAC engineers to calculate electrical demand, size circuits and breakers, estimate operating costs, and plan facility electrical infrastructure.

Historical Context and Standardization

The relationship between horsepower and watts has fascinating historical evolution. Original Definition (1782): James Watt observed brewery draft horses could sustain lifting 33,000 pounds one foot in one minute (550 ft·lbf/s) for extended periods. He defined this as 1 horsepower to market his steam engines. Marketing genius: brewery owners understood horses, could easily compare "this engine replaces 10 horses." Watts Development (1882): One hundred years later, the International Electrical Congress defined the watt (honoring James Watt) as the SI unit of power: 1 watt = 1 joule per second. Converting Watt's horsepower to SI units: 550 ft·lbf/s × 1.355818 J/ft·lbf = 745.699872 watts ≈ 745.7 watts. Multiple Standards Emerge: As horsepower spread globally, regions defined slightly different standards. Continental Europe adopted metric horsepower (PS) based on 75 kg lifted 1 meter in 1 second = 735.5 watts. Electrical engineers defined electrical horsepower as exactly 746 watts for motor ratings. Modern Standardization Efforts: Since 1960, the SI system officially uses only watts for power. However, horsepower persists in automotive marketing (consumer familiarity), industrial motor specifications (tradition), and mechanical engineering (intuitive understanding). Modern compromise: technical specifications list both (e.g., "200 hp / 149 kW"). European Union regulations since 2010 require kilowatts as primary unit with horsepower optional. Future Transition: Electric vehicles accelerate watt/kilowatt adoption—Tesla, Porsche, Audi emphasize kW ratings. Younger generations educated in SI units prefer watts. Prediction: within 20-30 years, horsepower becomes supplementary like pounds and inches in metric countries—officially deprecated but culturally persistent. Understanding this history explains why multiple horsepower standards exist and why conversion to watts provides universal comparison across regions and industries.
