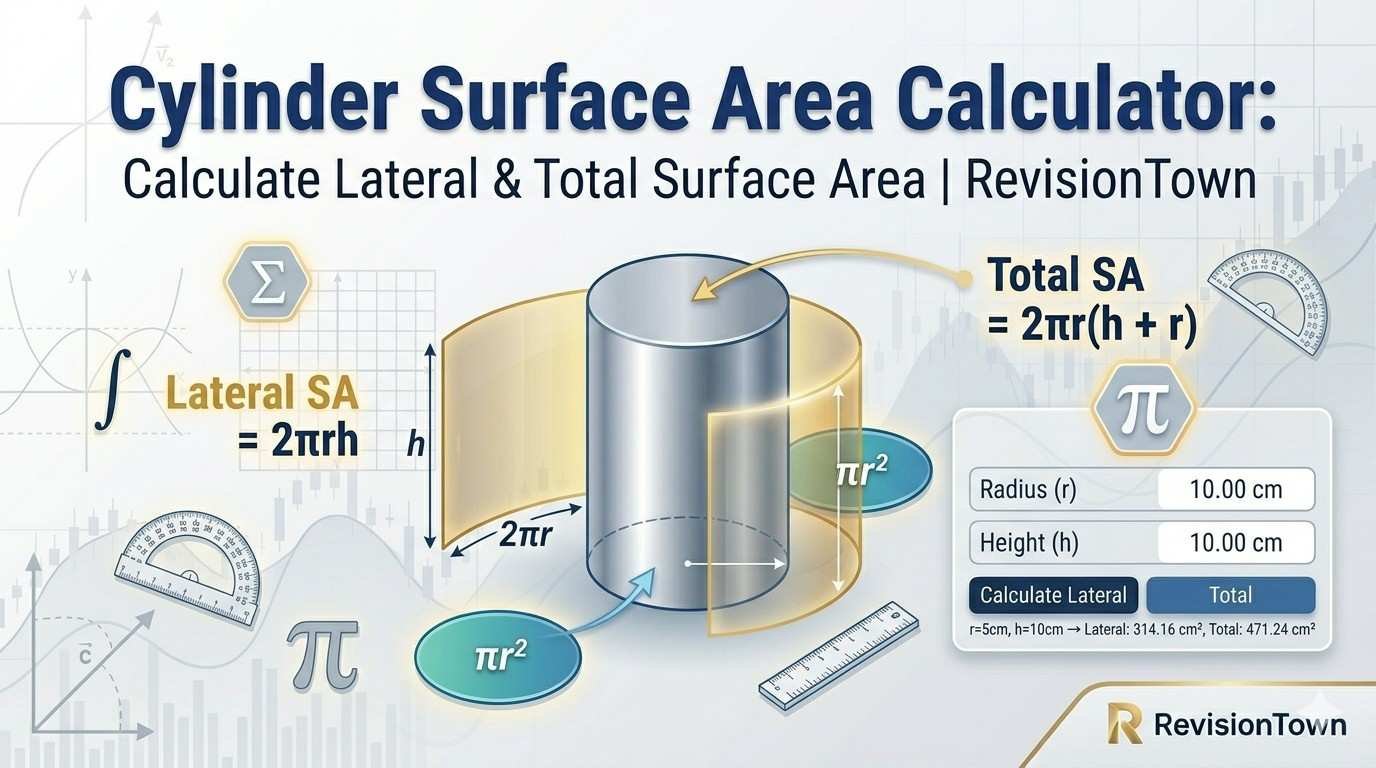

Cylinder Surface Area Calculator: Calculate Lateral & Total Surface Area
A cylinder surface area calculator computes the lateral surface area (curved side) and total surface area (including top and bottom circles) of a cylinder using the formulas: lateral SA = 2πrh and total SA = 2πr(r + h), where r is the base radius and h is the height. This comprehensive geometric tool performs calculations including finding lateral surface area, total surface area with both bases, volume, and all cylinder properties essential for mathematicians, engineers, manufacturers, students, and anyone requiring accurate cylinder calculations for construction, manufacturing, packaging design, storage tanks, or problem-solving in mathematics, engineering, and industrial applications.
⭕ Cylinder Surface Area Calculator
Calculate cylinder properties
Calculate from Radius and Height
Total SA = 2πr(r + h)
Calculate from Diameter and Height
When diameter is known
Calculate from Volume and Radius
Find surface area when volume is known
Lateral Surface Area Only
Curved side without top and bottom
Complete Cylinder Analysis
All properties at once
Understanding Cylinder Surface Area
A cylinder is a three-dimensional shape with two parallel circular bases connected by a curved surface. Surface area calculations involve two components: the lateral surface area (the curved side, like a label wrapped around a can) and the base areas (the top and bottom circles). Total surface area includes all three parts. Understanding these calculations is essential for manufacturing, packaging, construction, and engineering where cylinders are ubiquitous—from cans and pipes to storage tanks and columns.
Cylinder Surface Area Formulas
Lateral Surface Area
Lateral (Curved) Surface Area:
\[ A_{lateral} = 2\pi rh \]
This is the curved surface only (no top or bottom)
Where: \( r \) = radius, \( h \) = height
Total Surface Area
Total Surface Area (with both bases):
\[ A_{total} = 2\pi r^2 + 2\pi rh \]
Factored Form:
\[ A_{total} = 2\pi r(r + h) \]
Includes both circular bases plus lateral surface
Component Breakdown
Base Area (each): \( \pi r^2 \)
Both Bases: \( 2\pi r^2 \)
Lateral Surface: \( 2\pi rh \)
Total: \( 2\pi r^2 + 2\pi rh \)
Volume Formula
Cylinder Volume:
\[ V = \pi r^2 h \]
Base area × height
Step-by-Step Examples
Example 1: Total Surface Area
Problem: Find total surface area: r=5cm, h=10cm.
Method 1 - Factored Formula:
A = 2πr(r + h) = 2π(5)(5 + 10) = 2π(5)(15) = 150π ≈ 471.24 cm²
Method 2 - Components:
Base areas: 2πr² = 2π(25) = 50π cm²
Lateral: 2πrh = 2π(5)(10) = 100π cm²
Total: 50π + 100π = 150π ≈ 471.24 cm²
Example 2: Lateral Surface Only
Problem: Calculate lateral surface for r=5cm, h=10cm.
Formula: A = 2πrh
A = 2 × π × 5 × 10 = 100π ≈ 314.16 cm²
Use case: Label wrapping around can (no top/bottom)
Surface Area Reference Table
| Radius (r) | Height (h) | Lateral SA | Total SA | Volume |
|---|---|---|---|---|
| 3 | 6 | 113.10 | 169.65 | 169.65 |
| 5 | 10 | 314.16 | 471.24 | 785.40 |
| 10 | 20 | 1,256.64 | 1,884.96 | 6,283.19 |
| 5 | 5 | 157.08 | 314.16 | 392.70 |
Common Cylinder Applications
| Application | Typical Size | Material | Use Case |
|---|---|---|---|
| Soda Can | r=3cm, h=12cm | Aluminum | Beverage container |
| Water Tank | r=1m, h=2m | Steel/Plastic | Water storage |
| Pipe Section | r=5cm, h=100cm | PVC/Metal | Plumbing |
| Storage Drum | r=30cm, h=90cm | Steel | Chemical storage |
Real-World Applications
Manufacturing & Packaging
- Can production: Calculate aluminum needed for beverage cans
- Label design: Determine label dimensions for cylindrical products
- Packaging: Estimate material for cylindrical containers
- Cost estimation: Calculate material costs based on surface area
Construction & Engineering
- Storage tanks: Design water, oil, and gas storage cylinders
- Pipes: Calculate material for pipe manufacturing
- Columns: Determine concrete for cylindrical support columns
- Silos: Design grain and material storage silos
Industrial & Chemical
- Pressure vessels: Calculate wall area for pressure rating
- Heat exchangers: Determine heat transfer surface area
- Reactors: Design chemical reactor vessels
- Coating: Estimate paint/coating requirements
Education & Mathematics
- Geometry lessons: Teach surface area concepts
- Problem solving: Practice cylinder calculations
- Model building: Create physical cylinder models
- Volume relationships: Explore SA to volume ratios
Tips for Cylinder Calculations
Best Practices:
- Identify what's needed: Lateral only or total surface area?
- Use consistent units: Keep radius and height in same units
- Remember π: Use 3.14159 or calculator π for accuracy
- Check base count: Total SA includes both circular bases
- Verify reasonableness: Total should exceed lateral area
- Diameter vs radius: Convert diameter to radius (r = d/2)
- Label applications: Use lateral area for wrapping calculations
Common Mistakes to Avoid
⚠️ Calculation Errors
- Forgetting bases: Using lateral formula when total needed
- Using diameter: Plugging diameter instead of radius into formula
- Missing π: Forgetting to multiply by π
- One base only: Using πr² instead of 2πr² for both bases
- Unit mismatch: Mixing cm and m in calculation
- Volume confusion: Using volume formula for surface area
- Wrong exponent: Using r³ instead of r² for circles
- Not factoring: Missing simplified form 2πr(r+h)
Frequently Asked Questions
How do you calculate cylinder surface area?
Two types: Lateral (curved side only) = 2πrh. Total (including top and bottom) = 2πr² + 2πrh = 2πr(r+h). Example: r=5cm, h=10cm. Lateral: 2π(5)(10) = 100π ≈ 314.16 cm². Total: 2π(5)(15) = 150π ≈ 471.24 cm². Steps: (1) identify radius and height, (2) choose lateral or total formula, (3) calculate. Essential for manufacturing, packaging, construction. Lateral for labels/wrapping, total for complete material estimation including ends.
What is the difference between lateral and total surface area?
Lateral surface area = curved side only (2πrh). Like label wrapped around can—no top or bottom. Total surface area = curved side plus both circular bases (2πr² + 2πrh). Example: r=5, h=10. Lateral: 314.16. Total: 471.24. Difference: 157.08 (two bases = 2πr² = 2π×25). Use lateral for coating inside tube, wrapping labels. Use total for closed containers, complete coating. Lateral always less than total. Important distinction for practical applications.
How do you find cylinder surface area from diameter?
Convert diameter to radius first: r = d/2. Then use formulas with radius. Example: d=10cm, h=10cm. Radius: r = 10/2 = 5cm. Total SA: 2πr(r+h) = 2π(5)(15) = 150π ≈ 471.24 cm². Alternative: write formula with diameter. Total SA = πd²/2 + πdh. Both methods give same result. First method (convert to radius) more straightforward. Common mistake: using diameter directly in radius formula—gives incorrect result 4× too large.
What is cylinder volume and how does it differ from surface area?
Volume = space inside (cubic units): V = πr²h. Surface area = outer covering (square units): SA = 2πr(r+h). Example: r=5, h=10. Volume: π×25×10 = 250π ≈ 785.4 cm³. Surface area: 150π ≈ 471.24 cm². Volume for capacity (how much fits inside). Surface area for material (how much covers outside). Different purposes, different units. Volume grows faster than surface area as cylinder scales up. Both essential for complete cylinder analysis.
How do you calculate material needed for a cylindrical tank?
Use total surface area formula: SA = 2πr(r+h). Example: water tank r=1m, h=2m. SA = 2π(1)(3) = 6π ≈ 18.85 m². Add 10-15% for waste/seams: 18.85 × 1.15 ≈ 21.68 m² material needed. For open-top tank: subtract one base (πr²). Example: 18.85 - 3.14 = 15.71 m². Account for overlaps, welding seams, structural reinforcement. Different materials (steel, plastic, fiberglass) have different waste factors. Include thickness for accurate material estimation.
Why is lateral surface area 2πrh?
Imagine unrolling cylinder's curved surface into rectangle. Width = cylinder circumference = 2πr. Length = cylinder height = h. Rectangle area = width × length = 2πr × h = 2πrh. This is why lateral formula works—curved surface "unwraps" into flat rectangle. Base circumference becomes rectangle width, height stays same. Fundamental relationship in cylinder geometry. Understanding this helps remember formula—visualize unwrapping label from can. Essential concept for surface area calculations.
Key Takeaways
Understanding cylinder surface area calculations is fundamental for manufacturing, engineering, construction, and mathematics. The formulas—lateral SA = 2πrh and total SA = 2πr(r+h)—provide essential tools for material estimation, cost calculation, and design optimization in countless practical applications.
Essential principles to remember:
- Lateral surface area: 2πrh (curved side only)
- Total surface area: 2πr(r+h) or 2πr² + 2πrh
- Two circular bases each: πr²
- Volume: πr²h (different from surface area)
- Use radius not diameter in formulas
- Total SA always greater than lateral SA
- Lateral = label area around cylinder
- Total = complete outer covering
- Units: surface area in square, volume in cubic
- Applications: cans, tanks, pipes, columns
Getting Started: Use the interactive calculator above to compute cylinder surface area from radius and height, diameter, or volume. Choose between lateral surface only or total surface area. Perfect for students, engineers, manufacturers, and anyone needing accurate cylinder calculations for education, manufacturing, construction, or design projects.
